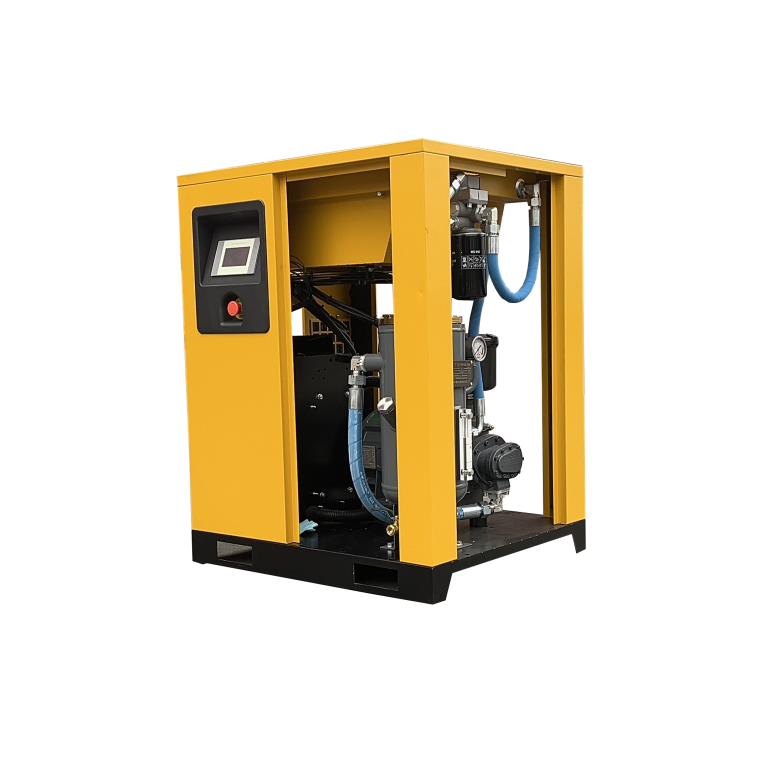

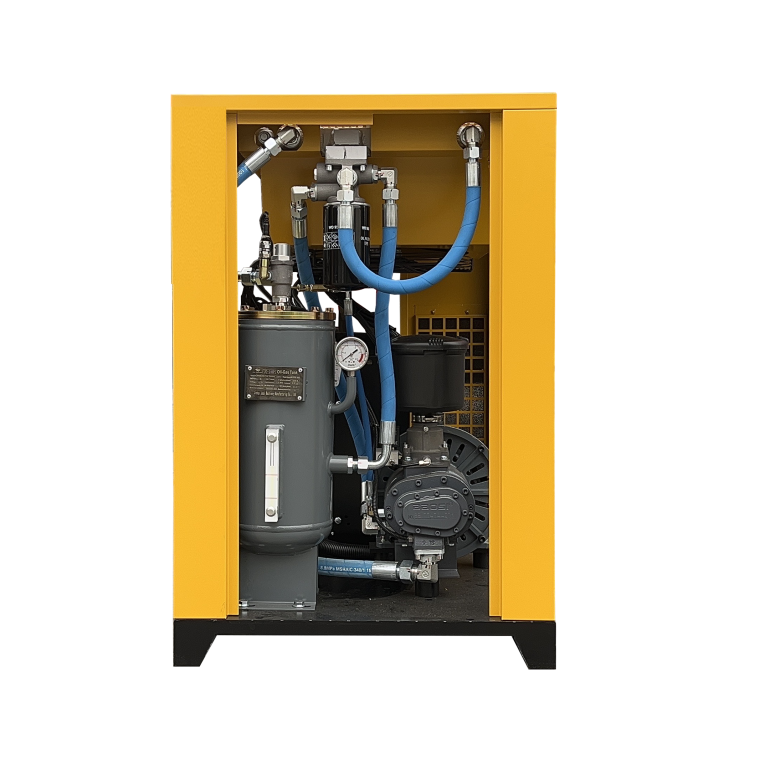

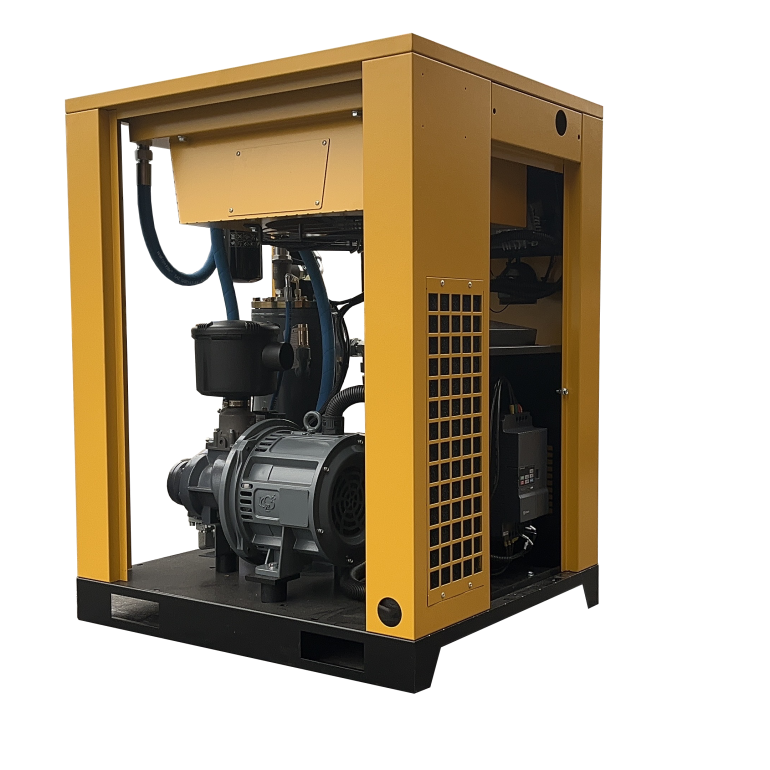

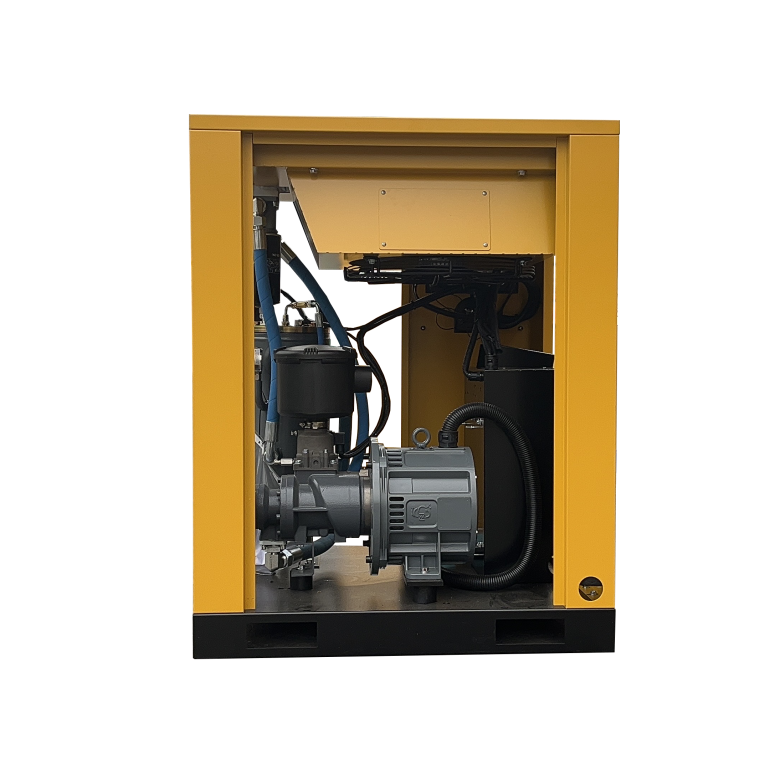

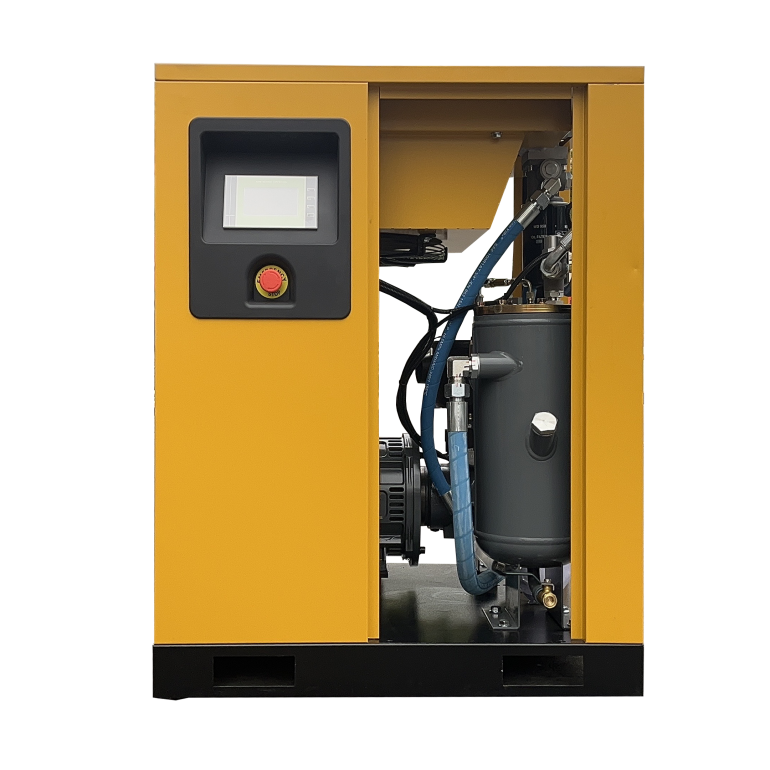

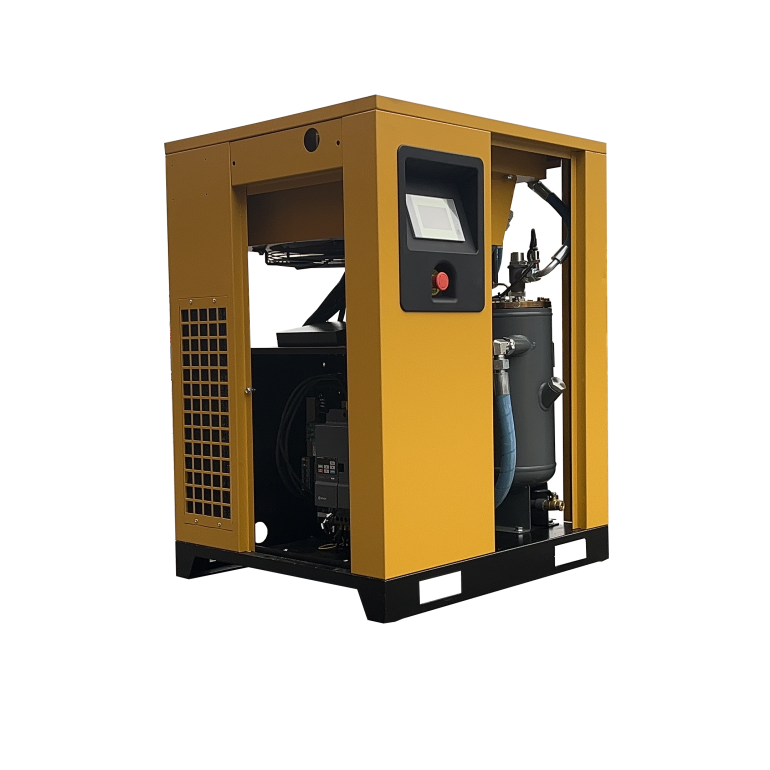

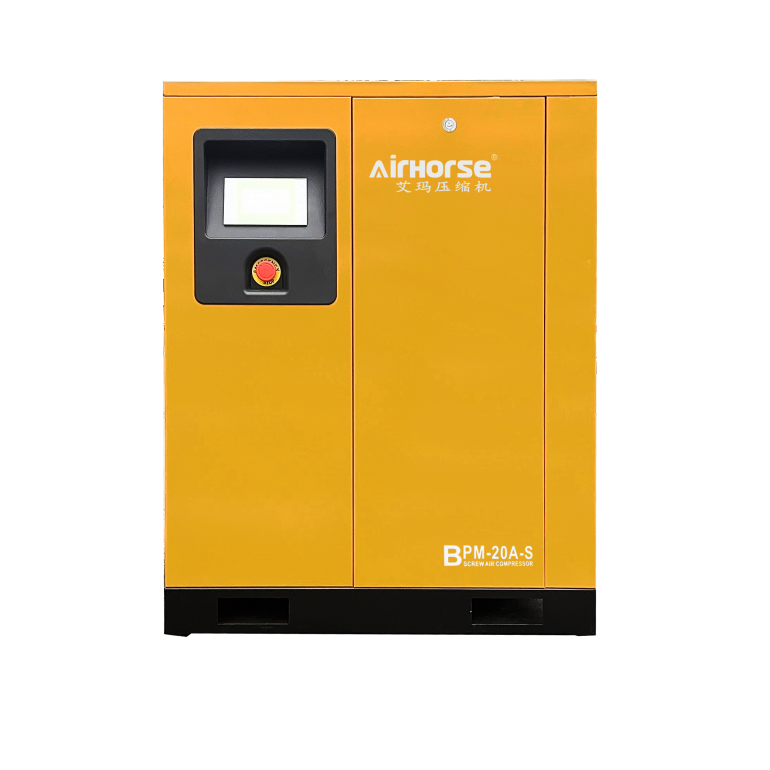

BPM PM VSD Screw Compressor

BPM PM VSD Screw Compressor 10-100HP，integrates the motor shaft directly with the screw rotors, eliminating couplings and belt wear and delivering nearly 100 % mechanical efficiency. The BPM series thus offers the best cost-performance solution for users who need continuous energy savings, stable pressure, and high reliability.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

艾玛永磁变频螺杆式空压机 Permanent Magnetic VSD Air Compressor
型号 Model	排气压力 Working Pressure	排气量 Air Flow	电机功率 Motor Power	尺寸 Size	排气管口径 Outlet Diameter	重量 Weight
	(Mpa)	(m³/min)	（KW）	（L×W×H）mm	(size)	(Kg)
BPM-10A-S	0.8	1.1	7.5	740650800	G1/2	175
	1.0	0.9
BPM-20A-S	0.8	2.3	15	8507201070	G3/4	260
	1.0	2.0
BPM-30A-S	0.8	3.8	22	11507801095	G1	365
	1.0	3.6
BPM-50A-S	0.8	6.5	37	13009001220	G1 1/2	535
	1.0	5.7
BPM-75A-S	0.8	10.5	55	170011001520	G2	895
	1.0	8.9
BPM-100A-S	0.8	13.5	75	170011001520	G2	950
	1.0	11.5

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment
24 Hours
Service

24 Hours Service Always at your service

AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
