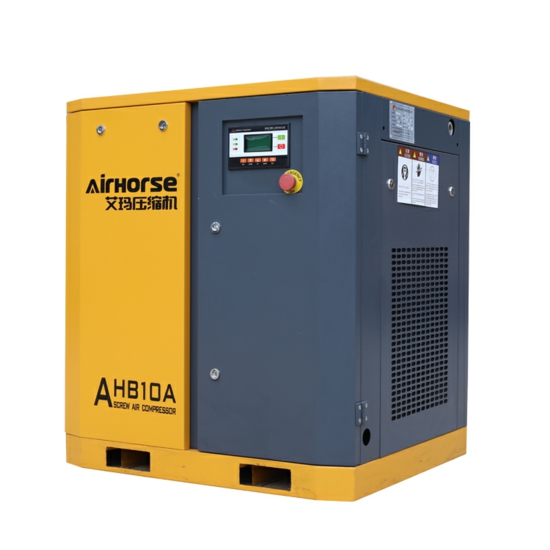

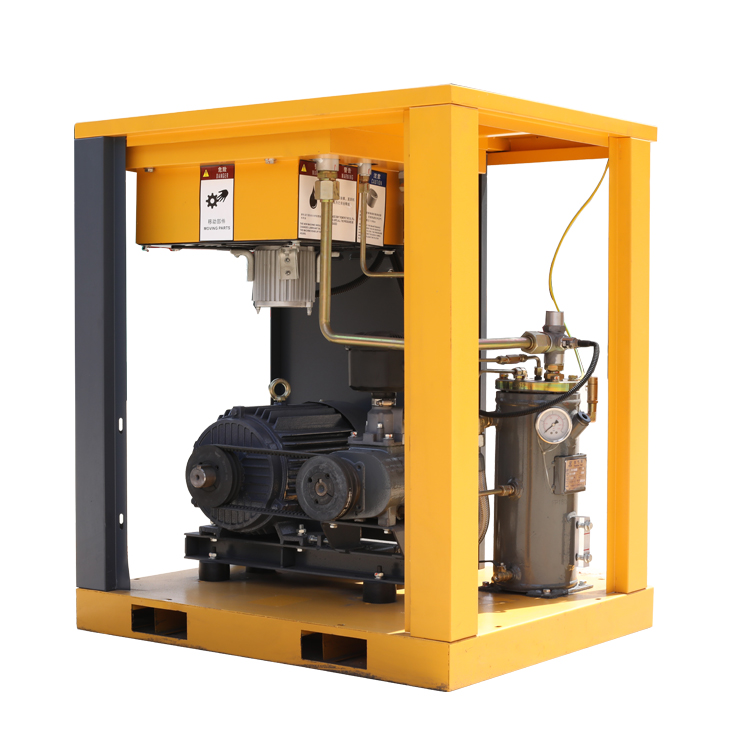

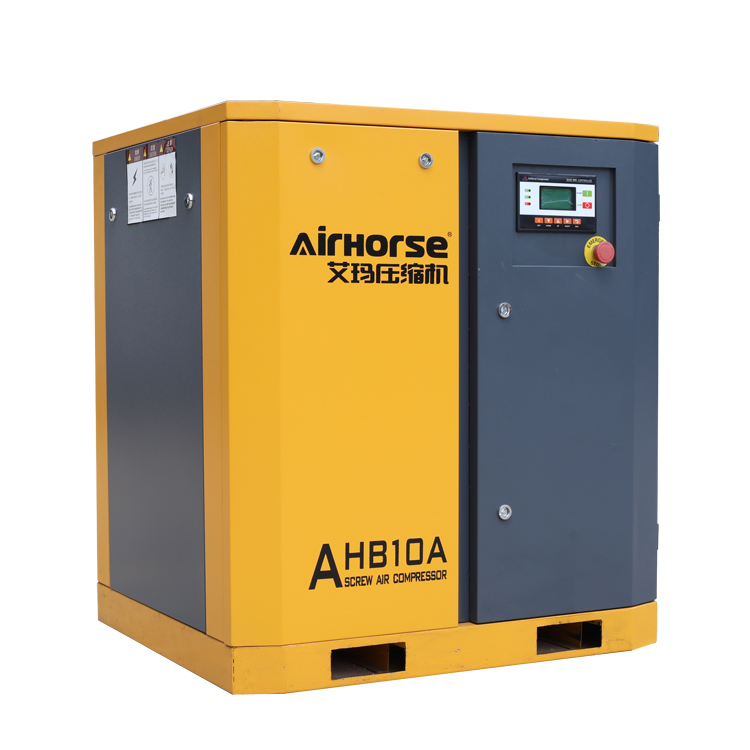

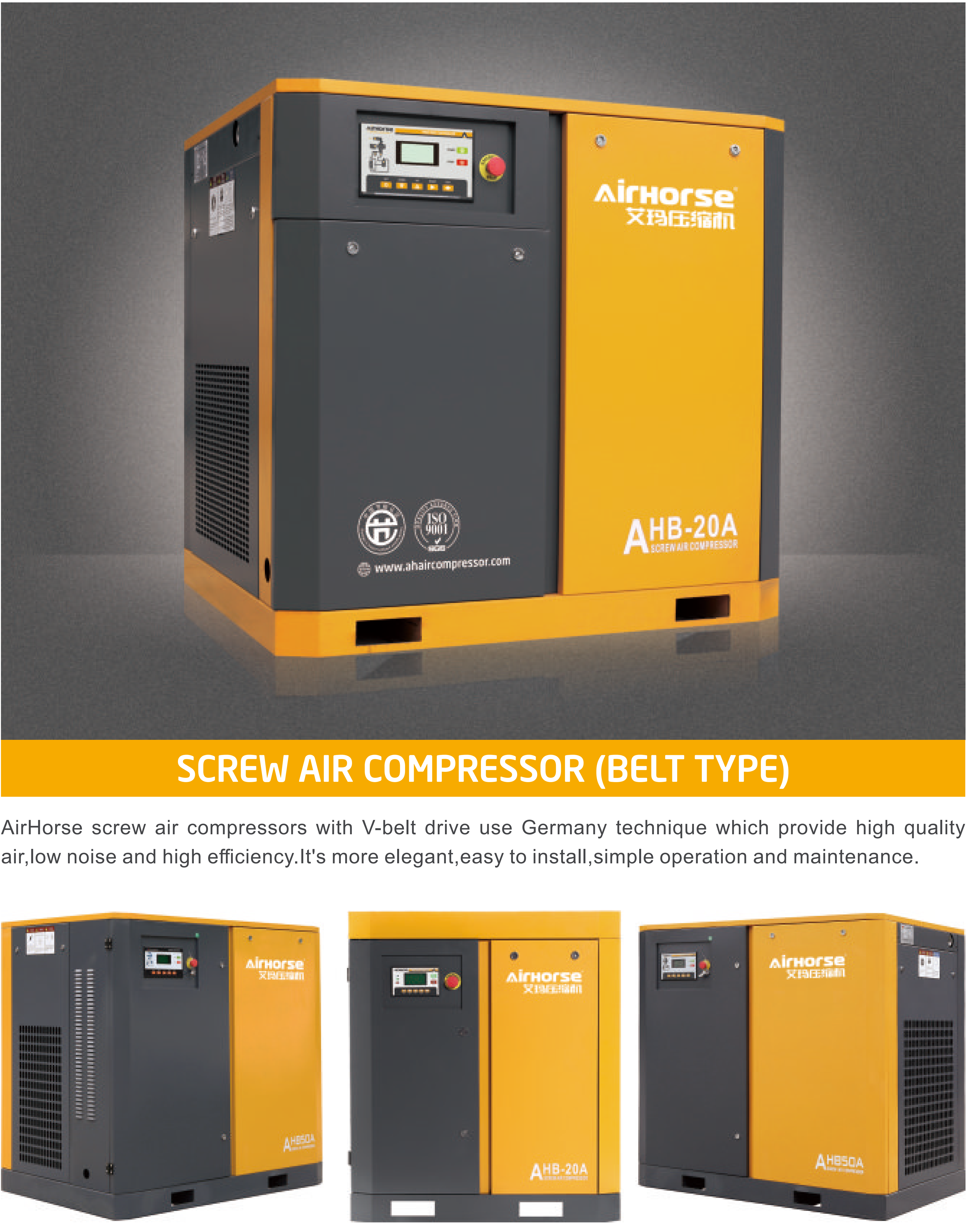

AirHorse Screw Air Compressor (Belt driven) | ||||||
Model | AHB-5A | AHB-7A | AHB-10A | AHB-15A | AHB-20A | |
Free air deliver/Discharge pressure | 0.55/0.8 | 0.85/0.7 | 1.2/0.7 | 1.6/0.7 | 2.5/0.7 | |
Free air deliver | 20/116 | 30/102 | 42/102 | 57/102 | 88/102 | |
Compression stage | Single stage | |||||
Ambient temprerature | -5~+45℃ | |||||
Cooling mode | Air cooling | |||||
Discharge temperature (℃) | Ambient temperature+15℃ | |||||
Lubricant (L) | 3 | 3.7 | 3.7 | 10 | 10 | |
Noise Level (Db) | 62±2 | 64±2 | ||||
Drive method | Belt driven | |||||
Electricity (V/ph/Hz) | 380/3/50 | |||||
Motor power(KW/HP) | 4/5.5 | 5.5/7.5 | 7.5/10 | 11/15 | 15/20 | |
Starting method | Direct starting | Y-△Starter (Star delta starting) | ||||
Dimension L*W*H (mm) | 920*600*690 | 860*730*960 | 940*800*1075 | |||
Net Weight (kg) | 136 | 170 | 210 | 260 | 305 | |
Air outlet diameter(inch/mm) | 3/4’’ | 1/2’’ | 1½’’ | |||
