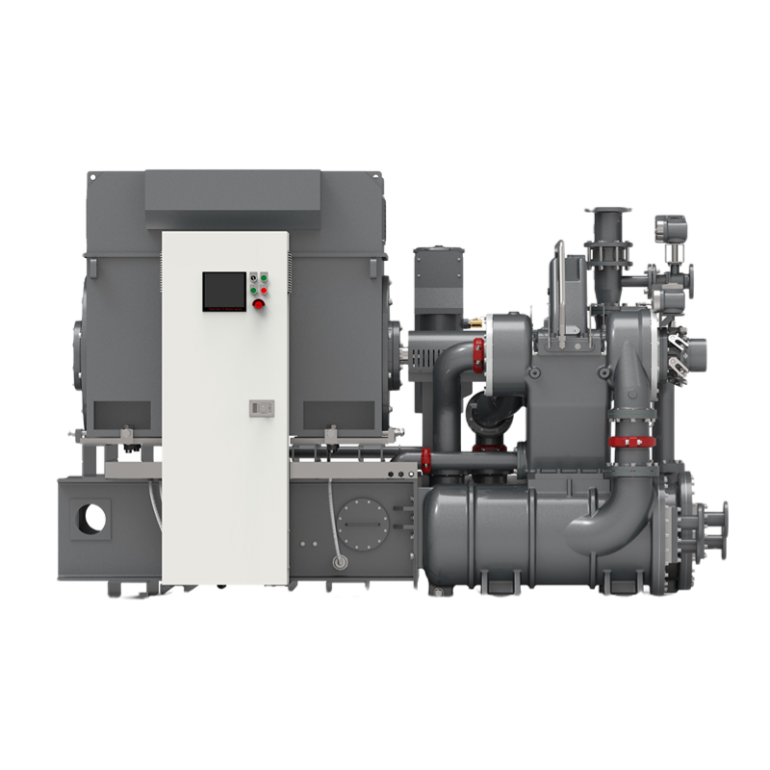

Centrifugal air compressor

The centrifugal compressor adopts a modular design, with excellent host system, unique stainless steel cooler, complete and reliable lubrication system, high-quality main motor, complete and efficient electric control system, and a truly on-demand integrated unit.

It has the advantages of compact structure, reliable operation, energy-saving and efficient, low assembly volume, and convenient installation. Ensure the provision of continuous, stable, and oil-free high-quality compressed air to users.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

CENTRIFUGAL COMPRESSOR TECHNICAL PARAMETERS
TYPE	Barg（mpa）	Air Flow Range（m³/min）	Power（KW）	*Size / LWH（mm）*
AHC-50	0.6~8	25~45	132~263	265016501850
AHC-80	0.6~10	40~85	225~450	335018602150
AHC-120	0.6~13	75~132	400~600	385021002250
AHC-200	0.6~13	115~208	618~1120	425021502250
AHC-250	0.6~20	175~260	925~1375	450022502380
AHC-300	0.6~25	228~310	1225~1600	465022502450
AHC-350	0.6~25	283~260	1500~1850	485022502500
AHC-450	0.6~25	350~460	1800~2350	525023002950
LARGE CENTRIFUGAL COMPRESSOR (AIRNITROGEN)TECHNICAL PARAMETERS
TYPE	Barg（mpa）	Air Flow Range（m³/min）	Power（KW）	*Size / LWH（mm）*
AHC-500	0.6~25	430~586	2250~3150	625032503550
AHC-1000	0.6~25	550~1015	2850~5750	835038503850
AHC-1500	0.6~25	920~1650	6000~10500	1250045504550
AHC-3000	0.6~25	1680~3000	10800~20000	1450053505350

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment
24 Hours
Service

24 Hours Service Always at your service

AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
