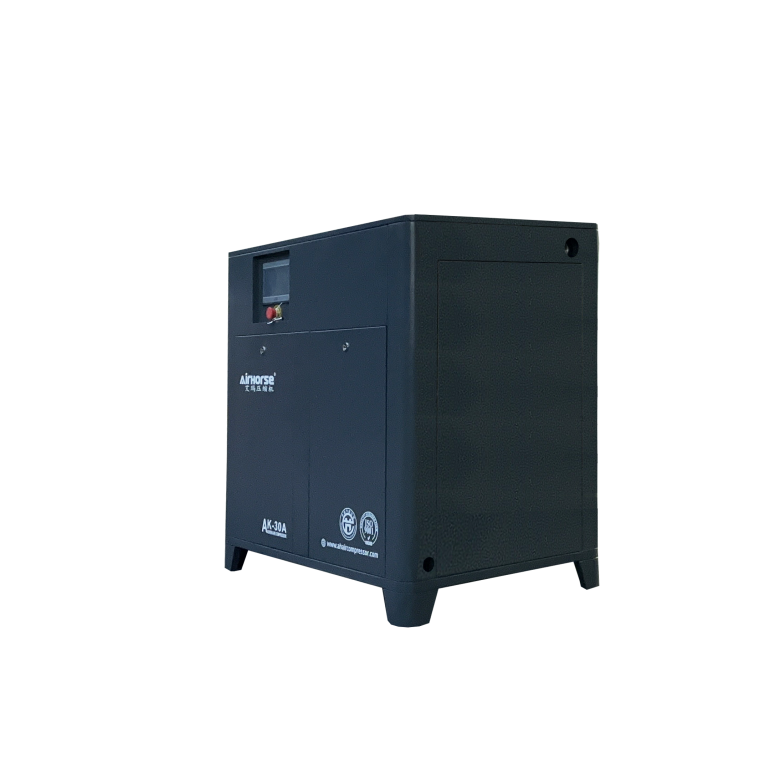

AK PM VSD SCREW AIR COMPRESSOR

Variable frequency regulation stable supply pressure

Adopting frequency conversion speed control to make full use of energy-saving effects to create a new generation of energy-saving

compressor that saves electricity and energy

Intelligent HMI human-computer interaction interface,the operation is very simple and convenient,and the state is clear at a glance.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

永磁变频螺杆机 TECHNICAL PARAMETER OF PM VSD SCREW AIR COMPRESSOR
型号 Model	排气压力 Working Pressure (Mpa)	排气量 Air Flow (m3/min)	电机功率 Motor Power (KW)	外形尺寸/Size L×W×H (mm)	出口管径 Outlet Diameter (DN)	重量 Weight (kg)
AK-4A	0.8	0.4	3	740×590×775	3/4"	100
	1.0	0.25
AK-5A	0.8	0.5	4	740×590×775	3/4"	100
	1.0	0.4
AK-7A	0.8	0.7	5.5	740×650×775	1/2"	110
	1.0	0.6
AK-10A	0.8	1.1	7.5	740×650×775	1/2"	115
	1.0	0.9
AK-20A	0.8	2.3	15	850×720×1036	3/4"	185
	1.0	2
AK-30A	0.8	3.8	22	1150×750×1095	1"	250
	1.0	3.6
AK-50A	0.8	6.5	37	1300×900×1231	1 1/2"	400
	1.0	5.7
AK-75A	0.8	10.5	55	1600×1100×1520	2"	710
	1.0	8.9
AK-100A	0.8	13.5	75	1600×1100×1520	2"	780
	1.0	11.5
