Tank,Dryer mounted screw compressor

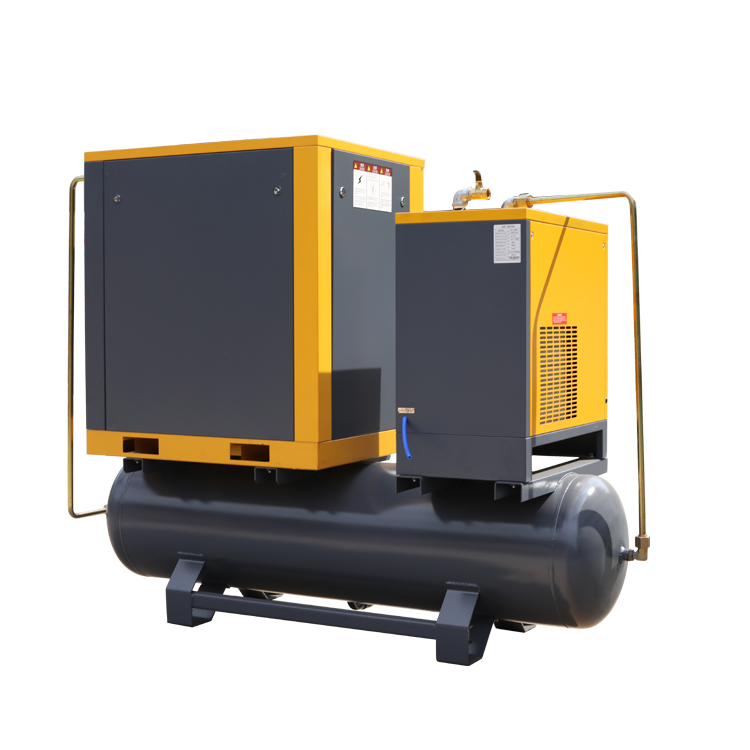

The tank mounted air compressor includes an integrated refrigerated air dryer and an air receiver that provides a quiet continuous working air compressor option for small and medium-sized businesses with integrated air storage. Refrigerated air dryers cool air before storing it in tanks to remove moisture from the air and prevent rust or damage to your equipment. The gas receivers provide backup power for large air demands, act as a buffer between the compressor and your equipment, and they reduce the constant circulation of the compressor by keeping the tank ready to use.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

Tank and Dryer Mounted Screw Air Compressor (3-in-1 type)
Model	Motor power		Free air deliver	Free air deliver	Discharge pressure	Tank volume	Electricity	Weight	Size
Model	（KW）	（HP）	（m³/min）	（CFM）	（MPa）	（L）	（V/hp/Hz）	（KG）	（mm）
AHB-7A	5.5	7.5	0.75	27	0.8	300	300/3/50	410	19007001300
AHB-10A	7.5	10	1.1	39	0.8	300	380/3/50	425	19007301520
AHB-15A	11	15	1.5	53	0.8	300	380/3/50	475	19007001630
AHB-20A	15	20	2.3	81	0.8	500	380/3/50	540	20008001800

Tank,Dryer mounted screw compressor
Download

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment
24 Hours
Service

24 Hours Service Always at your service

AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
